3D printed base/stand

Post by andysnook » Tue Mar 21, 2017 12:14 am

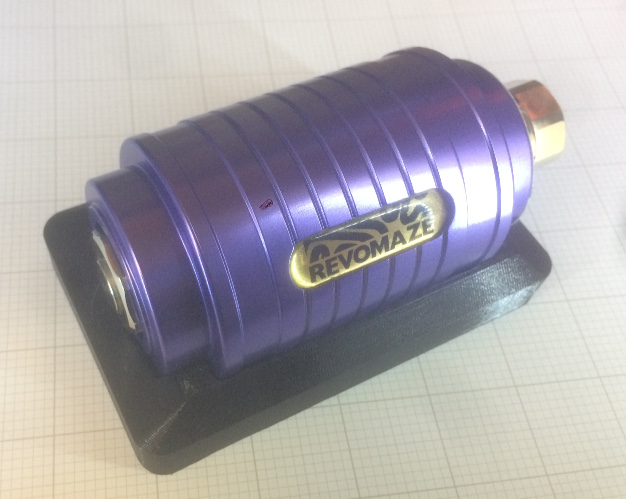

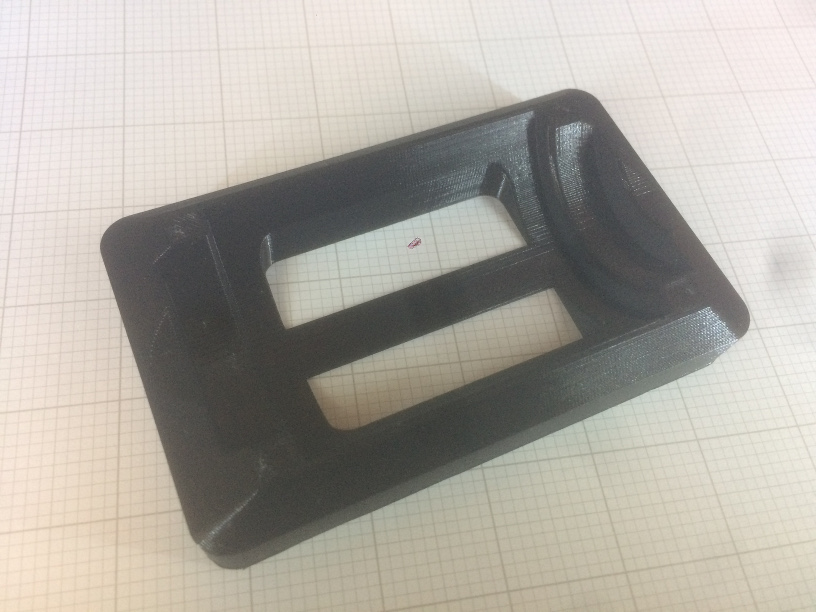

Looking for things to make to justify a 3D printer purchase, came up with this for my revos. Anyone with a 3D printer could probably make their own design quickly enough. But I made this and thought I'd share it in case anyone finds it useful! :)

http://www.thingiverse.com/thing:2191561
Solved: BU02389 BR02257 IN00114 GR01967 AQ01088 GM00062 CU00062
In Progress: SA00017 LM30230
On Hold: OR00160
Boxed: SILVER

User avatar
03SVTCobra
Posts: 1514
Joined: Wed Jun 09, 2010 11:46 pm
Location: NY

Re: 3D printed base/stand

Post by 03SVTCobra » Tue Mar 21, 2017 1:25 am

Thank you. Im going to try and run one tomorrow.
BU00060 :) GR00060 :) BR00060 :) AG00060 :) AU00060 :)
R00060 :) OR00060 :) LM00060 :) TI00030 :) CU00060 :) AQ00060 :) IN00060 :)
MT00060 :) TQ00060 :)GM :) HM :)
Blue Obs :) Green Obs :) Black Obs :) Black Obs V2 :) Red Obs :|

andysnook
Posts: 69
Joined: Sat Oct 29, 2016 3:24 pm
Location: UK

Re: 3D printed base/stand

Post by andysnook » Tue Mar 21, 2017 1:43 am

Let me know if you find it useful. I'm up for tweaking it or creating some variants if there's some interest.
Solved: BU02389 BR02257 IN00114 GR01967 AQ01088 GM00062 CU00062
In Progress: SA00017 LM30230
On Hold: OR00160
Boxed: SILVER

User avatar
BBloke
Posts: 734
Joined: Wed Aug 22, 2012 11:20 am
Location: West Midlands

Re: 3D printed base/stand

Post by BBloke » Tue Mar 21, 2017 2:38 pm

It looks good :)
BBloke

Pro Level 3 - BLopen | BL #1580 open
Open #100: AQ | BL | GR | BR | AG | GU | TI | OR | CU | IN | LI | MN
Closed: AU
Ordered: SA
R2 Voyager #100: Mercury 1st Batch (open) | Venus pre-ordered

User avatar
ReVoRabbit
Posts: 1329
Joined: Wed Mar 25, 2009 10:51 pm
Location: The Tabernacle at Pendrell Vale
Contact:

Re: 3D printed base/stand

Post by ReVoRabbit » Wed Mar 22, 2017 12:40 am

andysnook wrote:Let me know if you find it useful. I'm up for tweaking it or creating some variants if there's some interest.
Maybe a version that covered half the puzzle and add a couple grooves in the bottom. Then we could use them as storage cases and put a couple rubber bands around them to hold then together.
OWNER OF REVOMAZE SET 20
Since February 18 2009
Extreme
BU GR BR AG au pu
BL RD hm or ti lm
aq tq mt in cu gm sn
V2: BU GR BR MINI Marbles Set
Obsession
Black Body: BU(prototype) BL BU GR BL RD
Colored Body: BU GR RD
L v2: BUpro GR BL
Voyager
Wishlist:Ç
Purchased:R2ωξ
Shipped:

andysnook
Posts: 69
Joined: Sat Oct 29, 2016 3:24 pm
Location: UK

Re: 3D printed base/stand

Post by andysnook » Wed Mar 22, 2017 11:24 am

ReVoRabbit wrote:Maybe a version that covered half the puzzle and add a couple grooves in the bottom. Then we could use them as storage cases and put a couple rubber bands around them to hold then together.
Interesting idea. I hadn't considered that, because I have the original boxes for mine. Now I have the profile tuned in for the revo itself, i can cut that particular shape out of anything. I designed it using openscad and will probably upload the files to thingiverse at some point. Means anyone can change/remix any way they like then.
Solved: BU02389 BR02257 IN00114 GR01967 AQ01088 GM00062 CU00062
In Progress: SA00017 LM30230
On Hold: OR00160
Boxed: SILVER

User avatar
ReVoRabbit
Posts: 1329
Joined: Wed Mar 25, 2009 10:51 pm
Location: The Tabernacle at Pendrell Vale
Contact:

Re: 3D printed base/stand

Post by ReVoRabbit » Wed Mar 22, 2017 7:33 pm

I have revos that came from the factory without a box and some that came 2 to a box. While this was fine for shipping, once the plastic pouch and expanding protective sleeve were removed, storage options were not ideal. Which is why the moment i saw your stand, i thought it was a perfect option for protecting my puzzles.
OWNER OF REVOMAZE SET 20
Since February 18 2009
Extreme
BU GR BR AG au pu
BL RD hm or ti lm
aq tq mt in cu gm sn
V2: BU GR BR MINI Marbles Set
Obsession
Black Body: BU(prototype) BL BU GR BL RD
Colored Body: BU GR RD
L v2: BUpro GR BL
Voyager
Wishlist:Ç
Purchased:R2ωξ
Shipped:

andysnook
Posts: 69
Joined: Sat Oct 29, 2016 3:24 pm
Location: UK

Re: 3D printed base/stand

Post by andysnook » Wed Mar 22, 2017 10:27 pm

I think I can present it as more of a toolkit. At the end of the day, once you have the shape of revomaze V1 set up you can construct any other shape, then subtract the revomaze from it. Any stand/case/display/etc could then be created without too much trouble.

I've already had one enquiry about making them, but honestly I'm not sure I have any intention of doing any more than sharing the design (after all, 3D printing is not exactly a fast process). Revomaze has an awesome community, so I'm just sharing on the chance I might be able to give something back.

RevoRabbit - do you have a 3D printer?

I'll report back in a couple of days. Presumably by cleaning up the openscad files, uploading them to thingiverse, and offering a couple of permutations of stands, cases, etc.
Solved: BU02389 BR02257 IN00114 GR01967 AQ01088 GM00062 CU00062
In Progress: SA00017 LM30230
On Hold: OR00160
Boxed: SILVER

User avatar
03SVTCobra
Posts: 1514
Joined: Wed Jun 09, 2010 11:46 pm
Location: NY

Re: 3D printed base/stand

Post by 03SVTCobra » Wed Mar 22, 2017 11:22 pm

andysnook wrote:Let me know if you find it useful. I'm up for tweaking it or creating some variants if there's some interest.
Really like the stand. Printed a second one today. Only thing I might do is put some rubber feet on it.
BU00060 :) GR00060 :) BR00060 :) AG00060 :) AU00060 :)
R00060 :) OR00060 :) LM00060 :) TI00030 :) CU00060 :) AQ00060 :) IN00060 :)
MT00060 :) TQ00060 :)GM :) HM :)
Blue Obs :) Green Obs :) Black Obs :) Black Obs V2 :) Red Obs :|

User avatar
03SVTCobra
Posts: 1514
Joined: Wed Jun 09, 2010 11:46 pm
Location: NY

Re: 3D printed base/stand

Post by 03SVTCobra » Wed Mar 22, 2017 11:24 pm

ReVoRabbit wrote:
andysnook wrote:Let me know if you find it useful. I'm up for tweaking it or creating some variants if there's some interest.
Maybe a version that covered half the puzzle and add a couple grooves in the bottom. Then we could use them as storage cases and put a couple rubber bands around them to hold then together.
Weren't you working on a carbon fiber stand? Hows that going?
